Brake noise is one of the major reasons for a driver to visit a workshop. It can be a complex issue, and is often difficult to solve. From worn brake pad sound to brake pad squel, there are many different noises you can experience with brake pads.

WHAT IS BRAKE NOISE?

Brake noise typically originates from vibration on a part within the wheel end section of the vehicle – between the tire and the connection to the chassis. Noise is often blamed on the brake pad itself, but can come from any part, from the wheel bearing to the ball joint. Within the brake system, it’s normal to have some vibration, but it is not usually intense enough to be audible.



A. TYPES OF NOISE EXPERIENCED BY DRIVERS

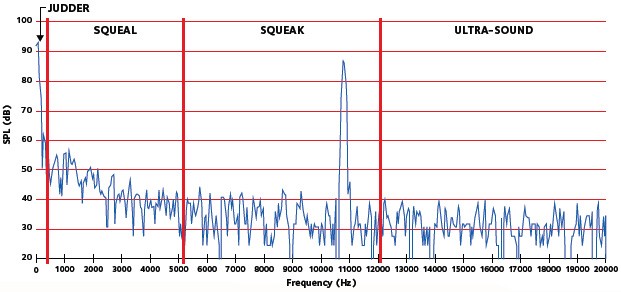

ferodo-support-techtips-brakenoise-brake-table-2016

LOW FREQUENCY VIBRATIONS – JUDDER

ferodo-support-techtips-brakenoise-brake-visu-2016
DESCRIPTION:

A deep noise with frequency below 300hz.

CAUSE
  • Poor tolerance ( poor fitment on the hub or excessive disc thickness variation).
  • Disc damage
SOLUTION

Replace the disc and clean and lubricate all surfaces of the brake assembly according to the vehicle manufacturer's instructions.

MEDIUM FREQUENCY VIBRATIONS – SQUEAL

ferodo-support-techtips-brakenoise-brake-visu2-2016
DESCRIPTION

Noise with frequency in the range 300 - 5.000 Hz.

CAUSES
  • Sticky movement on the caliper piston,
  • non-planarity of the working surface of the disc,
  • pad fitting errors,
  • incorrect allocation of anti-noise fixings (eg. shims),
  • disc thickness too low.
ferodo-support-techtips-brakenoise-brake-visu3-2016
SOLUTION
  • Clean and lubricate components of the caliper,
  • ensure disc planarity (once fitted on to the hub) will stay within a tolerance of 0.1 mm.
  • Clean the hub surface, machine disc surface,
  • replace disc and make sure brake pads, shims and accessories are fitted properly.
  • Consider damping noise intensity with shims or brake pads with noise-reduction features.

HIGH FREQUENCY VIBRATIONS – SQUEAK

DESCRIPTION

Noise with frequency higher than 5 kHz

CAUSES

The most common reason for a squeak is a molecular vibration within the friction material during application to the brake disc.

SOLUTION

Replace the brake pad set. Also check that the accessories (e.g. the caliper clips) are correct and properly fitted

VERY HIGH FREQUENCY VIBRATIONS – ULTRASOUND

DESCRIPTION

Noise with frequency higher than 12 KHz, greater than the upper limit of human hearing.

B. FRICTION SURFACES GIVE VITAL CLUES

The appearance of the friction surfaces can give a good indication of the causes of noise problems. Jack up the vehicle, remove the pads and examine the friction surfaces to analyse potential problems. Below are five symptoms that relate to noise.

SYMPTOMS AND REMEDIES

TAPERED PADS

Solving-Noise-visu5

APPEARANCE: Uneven wear, tapered pads

CAUSE: Distorted caliper, caliper slides sticking, excessive caliper clearance

EFFECT: Premature pad wear, uneven braking pressure, noise

REMEDY: Replace pad set, maintain & service caliper

UNEVEN WEAR

Solving-Noise-visu6

APPEARANCE: Uneven wear on pad surface

CAUSE: Irregularly worn brake disc (a wear lip will be visible on the disc)

EFFECT: Squeal & judder, premature pad wear

REMEDY: Replace brake discs and pads

UNEVEN WEAR WITHIN AXLE

Solving-Noise-visu7

APPEARANCE: One or more brake pad within the axle set will be excessively worn

CAUSE: Caliper guide pins or piston sticking

EFFECT: The vehicle pulls to one side while braking, uneven & rapid pad wear, squeal & judder

REMEDY: Maintain all caliper slides & pistons, replace pads. Check discs

DAMAGED BACK PLATE

Solving-Noise-visu8

APPEARANCE: Damaged back plate

CAUSE: Incorrect assembly, excessive force used during fitting

EFFECT: Braking inefficiency, irregular wear, noise & judder

REMEDY: Replace full brake pad set

PISTON DAMAGE

Solving-Noise-visu9

APPEARANCE: Anti-noise features (rubber-coat / shim) damaged by piston

CAUSE: Piston not retracting fully, heavy brake use

EFFECT: Overheating, noise

REMEDY: Replace brake pad set, maintain caliper

C. AVOIDING NOISE PROBLEMS

The easiest way to avoid problems is to ensure that the brake pads and caliper are correctly assembled.

Tips for correct assembly:

ferodo-support-techtips-brakenoise-avoid-visu-2016
  • Strip and clean all the caliper slides and pins.
ferodo-support-techtips-brakenoise-avoid-visu2-2016
  • Emery paper can only be used on the caliper and pad abutments in the case of heavy rust or pollutants.
    Note: if the caliper is not sliding easily, this can result in tapered pads or uneven wear within the axle, which creates squeal and judder.
ferodo-support-techtips-brakenoise-avoid-visu3-2016
  • The pins must have the correct lubrication to ensure free movement so that the pin does not seize into the caliper body. Also, check the condition of the slide pin rubber boots to stop water ingress.
    Note: if the pins are not lubricated they may seize, causing wear taper and noise issues.
ferodo-support-techtips-brakenoise-avoid-visu4-2016
  • Check for free piston movement, and retract the piston fully – this is essential to avoid damage to the shim or the rubber coat.
ferodo-support-techtips-brakenoise-avoid-visu5-2016
  • Check that the brake pads fit freely and easily into the caliper brackets.
ferodo-support-techtips-brakenoise-avoid-visu6-2016
  • Clear burrs off the brake pad edges if required.
    Note: if the pad is not moving freely inside the brackets, there will be ongoing contact with the discs, causing squealing as well as tapered pads or uneven wear within the axle.
ferodo-support-techtips-brakenoise-avoid-visu7-2016
ferodo-support-techtips-brakenoise-avoid-visu7-2016
  • In certain cases (e.g. an old rusted caliper), it is a good idea to lightly lubricate the contact points between metal back plate and slides with FERODO brake grease, according to the vehicle manufacturer’s instructions.
    Note take care that NO grease touches the friction material.
ferodo-support-techtips-brakenoise-avoid-visu8-2016
  • Insert wear indicators, when appropriate, in or on the brake pads.
  • Screw in the caliper fixing-bolts.
  • Replace the thread-lock bolts with new ones.
ferodo-support-techtips-brakenoise-avoid-visu9-2016
  • Follow the correct tightening torque and sequence recommendations.
  • With the brake caliper reassembled, pump the brake pedal until the stroke is around one third of the full stroke potential.
  • Check that the brake operates correctly, including pad retraction.
  • Refit road wheel. If there is free rotation, the vehicle is ready to go back on the road.
    Note: do a road test before returning the vehicle to make sure that the brake system is in full working order. When you return the car to the driver, advise them on the correct bedding-in procedure to ensure proper brake efficiency. We have created a handy.
    Driver Tips leaflet you can use for this purpose – ask your local representative.
