REAR BRAKES CITROËN DS4

Download PDF

Rear Brakes

TRW BRAKING SYSTEM WITH ELECTRIC PARKING BRAKE

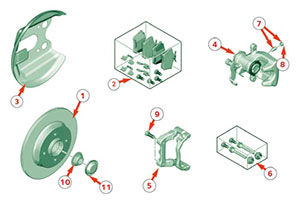

REAR BRAKE: ASSEMBLY

  1. Rear brake disc
  2. Rear brake pads
  3. Disc guard cover
  4. Rear brake caliper
  5. Brake caliper mounting bracket
  6. Brake caliper slide pins
  7. Bleeding screw
  8. Caliper bleed screw cover
  9. Caliper bracket mounting bolts
  10. Bearing hub nut
  11. Bearing hub cap

BRAKE PADS

Removal

  • Disengage parking brake
  • Disconnect battery negative terminal
  • Position vehicle onto lift
  • Loosen wheel nuts and remove rear wheels
  • Remove parking brake cable terminal (1) from bracket (2)

Brake caliper cable removal

  • Remove parking brake cable terminal (4) from brake caliper (3)
  • Remove handbrake cable from caliper body (a)
  • Loosen lower screw (5) with a wrench in point (b)
  • Turn brake caliper (3) up
  • Remove brake pads (7) and pad abutment shims (6)
  • Check brake pad wear evenness to detect any caliper fault

ASSEMBLY

  • Visually check sealing around brake caliper piston and the conditions of protective caps
  • Turn clockwise and press brake caliper piston using a special tool to make it move back

Remark: During this operation, visually check brake fluid inside reservoir to prevent any leakage.

When changing brake pads, also change brake pad abutment shims.

  • Fit new pad abutment shims and pads
  • Re-position brake caliper and tighten the (new) fastening bolts to a torque of 35 Nm
  • Refit parking brake cable into original location
  • Fit rear wheels (and re-torque nuts) and remove vehicle from lift

Carry out the operations after battery re-connection.

  • With engine running press brake pedal several times, slowly and progressively until brake pedal feels firm
  • Check brake fluid level and top up, if necessary
  • Adjust parking brake
  • Fill up and bleed braking system, if necessary

BRAKE DISCS

REMOVAL

  • Disengage parking brake
  • Disconnect battery negative terminal
  • Position vehicle onto lift
  • Loosen fastening nuts and remove rear wheels
  • Remove brake pads (see dedicated procedure above)
  • Remove fastening screw from brake caliper hydraulic pipe fitting
  • Remove bolts from slide pins between brake caliper and caliper mounting bracket

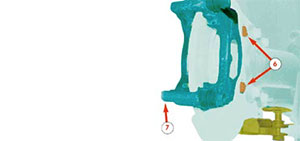

  • Remove the fastening bolts (6) between brake caliper mounting bracket (7) and rear suspension
  • Brake caliper mounting bracket removal
  • Visually check sealing around brake caliper piston and the conditions of protective caps
  • Turn clockwise to retract the caliper piston into the caliper body using a special tool

Remark: During this operation, visually check brake fluid inside reservoir to prevent any leakage.

  • Tighten brake caliper hydraulic pipe fitting screw to manufactures torque

ASSEMBLY

  • Position brake disc with bearing onto rear bearing spindle and tighten hub/bearing nut to the manufacturer’s torque
  • Position caliper mounting bracket onto rear suspension and tighten the mounting bolts to manufactures torque
  • Fit new brake pad abutment shims to the caliper bracket
  • Re-position brake caliper and tighten the (new) fastening screw to a torque of 35 Nm
  • Re-attach parking brake cable
  • Fit rear wheels (and re-torque), remove vehicle from lift

When changing brake pads, also change pad abutment shims.

  • Fit new brake pad abutment shims to the caliper bracket
  • Re-position brake caliper and tighten the (new) fastening screw to a torque of 35 Nm
  • Re-attach parking brake cable
  • Fit rear wheels (and re-torque), remove vehicle from lift

Carry out the operations after battery re-connection

  • With engine running press brake pedal several times, slowly and progressively until brake pedal feels firm
  • Check brake fluid level and top up, if necessary.
  • Adjust parking brake
  • Fill up and bleed braking system, if necessary

Electric Parking Brake

ADJUSTMENT

Remark: Electric parking brake can be adjusted only using a diagnosis tester compatible with that of the manufacturer.

  • Layout of parking brake cables
  • Calibrate parking brake (follow all the steps described by the diagnosis tester)
  • Read and delete any stored DTC
  • Operate parking brake control and check that rear wheels are safely locked

It is strictly forbidden to open an electric parking brake assembly after sale. If an electric parking brake fault is detected, the whole unit must be replaced.

Assembly

  1. Primary cable
  2. Electric parking brake unit
  3. Electric parking brake secondary cables

Remark: In case of total system failure, such as battery fault or electric parking brake fault, system can be manually disen- gaged using the special tool supplied with the vehicle tool kit.

Brake Fluid

TOPPING UP AND BLEEDING

  • Top up brake fluid reservoir to the max. level
  • Use a transparent pipe on brake caliper bleeding screw
    • Right hand rear wheel
    • Left hand rear wheel
    • Right hand front wheel
    • Left hand front wheel
  • Press brake pedal slowly to pressurise the braking circuit
  • Keep brake pedal pressed
  • Open bleeding screw (brake pedal lowers and system pressure decreases)
  • Keep pedal pressed all the way down and close bleeding screw
  • Let pedal move up
  • Wait for 2 seconds to make brake fluid reach brake master cylinder
  • Repeat the operation until brake fluid is clean and with no air bubbles



BRAKE FLUID
Product DOT4
Maintenance intervals Replacement and bleeding every 2 years
Capacity 1.0 litre



BRAKE FLUID DOT4
FBX050 500 ml
FBX100 1 lt
FBX500 5 lt
FBX2000 20 lt



FERODO PART NOS.

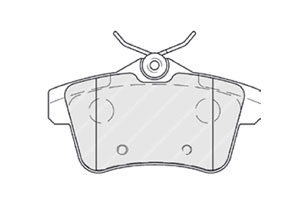

Brake Pads
Series Part No. FDB4224
Diameter (mm) 268.00
Thickness (mm) 12.0
Min. thickness (mm) 10.0
Note: with bearing and ABS ring

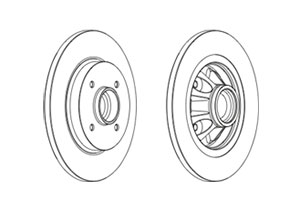

Brake Discs
Series Part No. DDF1735
Diameter (mm) 268.00
Thickness (mm) 12.0
Min. thickness (mm) 10.0
Note: with bearing and ABS ring
